Saturday 15 November 2014

Another Insane Hardware Project - Bally Squawk & Talk Sound Board Redesign - Gordon's Alive

So i've been working on some other sound board recreations alongside the gottlieb sound board that i've been talking about in my other thread.

This is project is to recreate the well known and loved Bally S&T Sound board found in many of Bally's greatest hits from the 80s. The idea is similar to my other hardware projects and is to redesign the board using modern components,and improve and simplify where possible

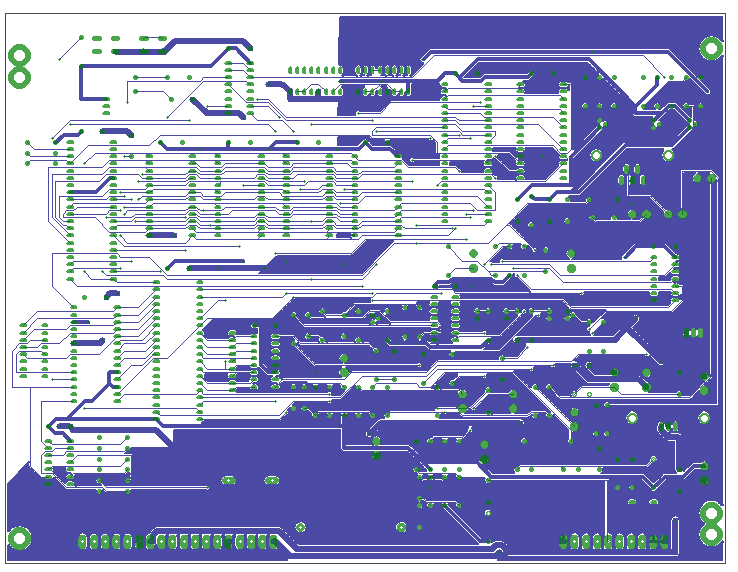

Here is my first pass at the redesign. I am hoping to get some protos made up and test over christmas. Register your interest with me now :)

I'm not sure on pricing structures yet as I need to identify the likely costs of all the chips and parts, but am aiming for around the £140 mark.





I have some nice ideas on the amp side to, but will get the boards working correctly first. There'll be an option to wire in your own external amp to instead of using the onboard setup to if you fancy more speakers or more volume! Stay tuned.

As normal, visit my full website over at http://mypinballs.co.uk or contact me directly at jim@mypinballs.co.uk to say hi

Sunday 2 November 2014

RFM Saucer Update

I have made some updates to the software (v0.5.0) for the controller board as per the feedback received so far. The saucers now cycle in opposite directions to each other.






» YouTube video

I have also added an option using dip switch 1 to enable or disable colour cycle lamp effects when all other lamps are off. This mean you can have total darkness on hypo beam mode or not. 100% user customable. The dip switches are read as the board boots up and operate for that power up time accordingly.

Regarding the pcbs boards, the order for the first batch is now with the manufacturer and i hope to receive the blanks back in a few weeks so assembly can start. The saucer plastics are still on there way so will update again when i receive them.

Here's a few pics of the prototype boards being assembled and installed into my game.








Here's a quick update video with the boards installed in the game.


As normal, visit my full website over at http://mypinballs.co.uk or contact me directly at jim@mypinballs.co.uk to order if you fancy adding this to your game.
